Roland DG VersaUV LEF-12i Benchtop UV Flatbed Printer

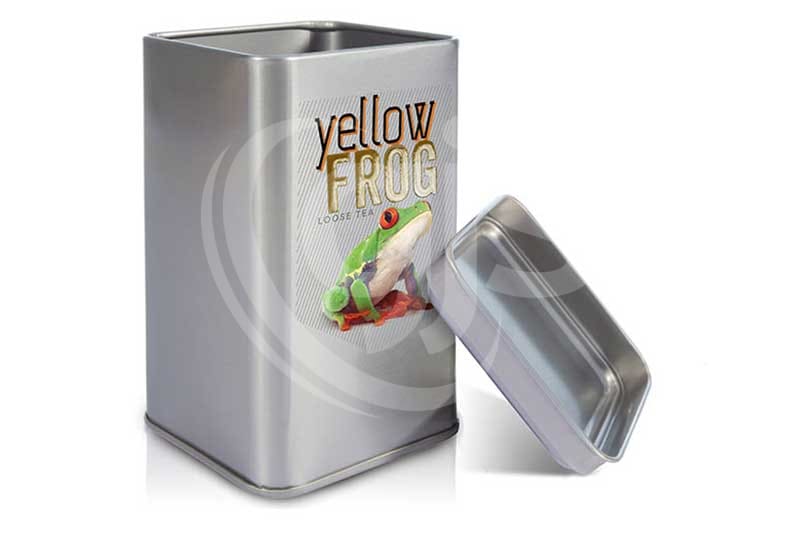

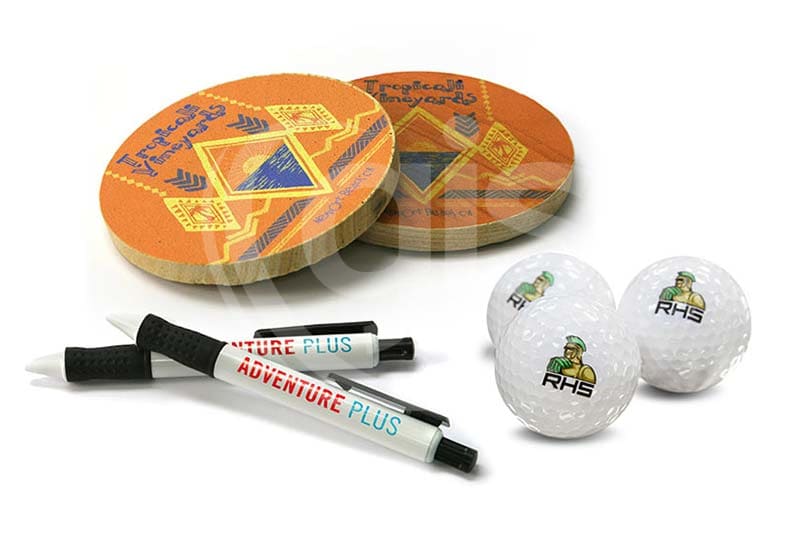

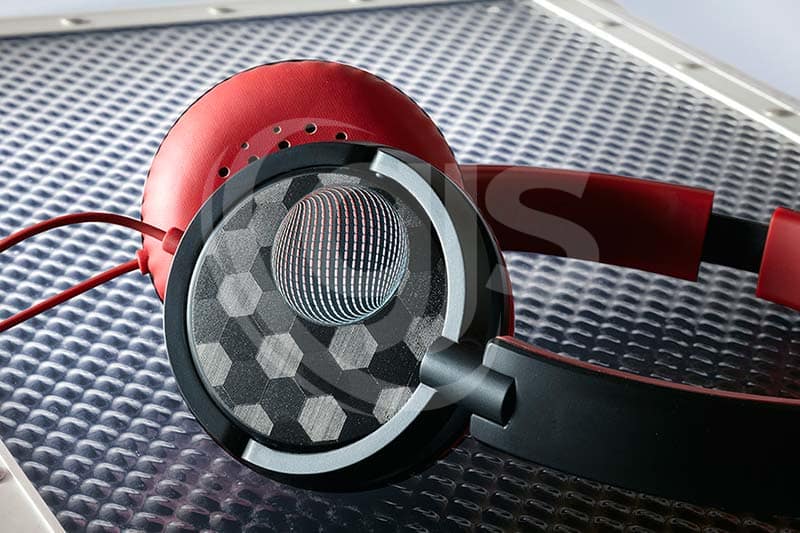

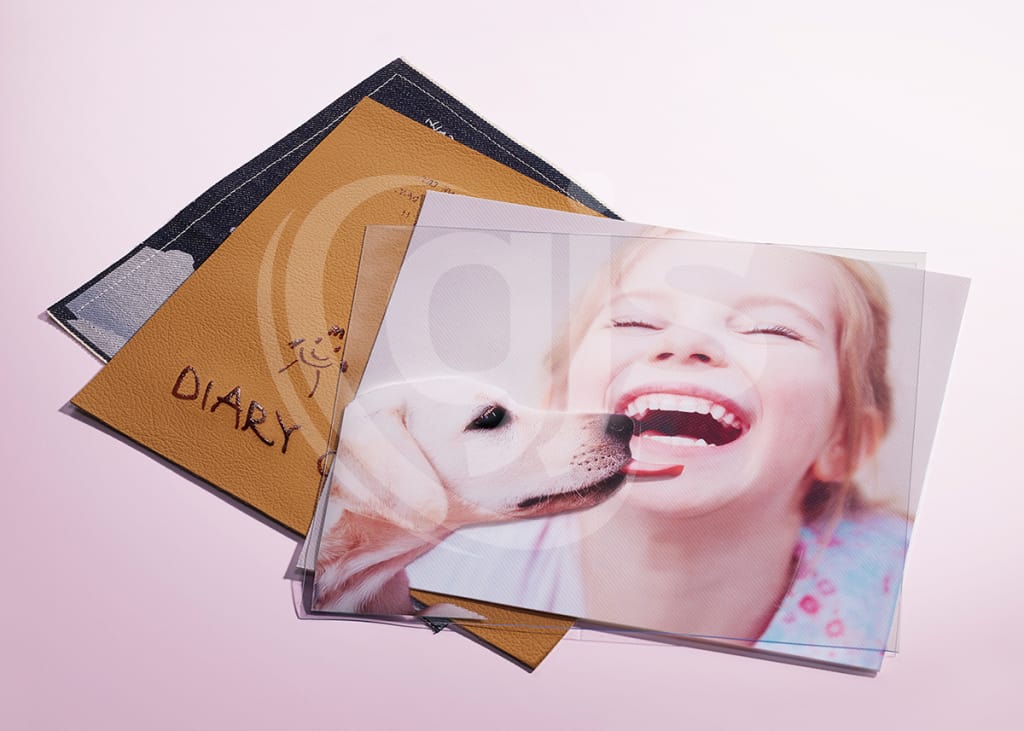

The VersaUV LEF-12i delivers Roland DG's unparalleled UV printing capabilities, facilitating direct printing on a vast array of substrates and even three-dimensional items, including pens, golf balls, awards and more.
By adding white and clear to the standard CMYK inkset, the VersaUV LEF-12i can create unique 3D textures and dimensional effects on objects of any colour.
A Clear (gloss) ink option enables spot gloss or matte finishes and highly unique embossed effects. While the white ink option allows printing white as a spot colour or as a flood behind CMYK on dark backgrounds and clear materials.
Feature Summary
- Prints CMYK plus White and Clear Coat directly on a wide variety of substrates, including three-dimensional items
- Long-lasting UV LED lamps are safe, energy efficient and generate minimum heat
- Advanced ECO-UV inks are instant-drying and flexible so they won't crack
- White ink is ideal for producing rich, dense color graphics on clear and metallic substrates
- Clear Coat produces matte or gloss finishes and improves scratch and chemical resistance and outdoor durability
- Patent-pending Automatic Ink Circulation System minimizes wasted ink
- Includes Roland DG VersaWorks Dual RIP software, featuring the Roland DG Color System for spot color matching, Variable Data Printing, the Roland DG Texture Library, and much more
- Maximum work area: 305x280mm Wide and 100mm thick (12” x 11” x 4”)
- Optional RotaPrint attachment available for printing directly to bottles and other cylindrical objects
Order
Product Specifications
| Model | VersaUV LEF-12I | ||
|---|---|---|---|
| Printing method | Piezoelectric inkjet / Table feed system | ||
| Acceptable media | Width | Maximum 335 mm (13.2 in.) | |
| Depth | Maximum 310 mm (12.2 in.) | ||
| Thickness | Maximum. 100 mm (3.94 in) | ||
| Weight | Maximum 5 kg (11 lbs) | ||
| Printing area | Maximum 305 x 280mm (12x11 in.) | ||
| Ink cartridges | Type | Roland DG Eco-UV inks | |
| Capacity | 6 cartridges - 220 ml (± 5 ml) | ||
| Colours | 6 colors (Cyan, Magenta, Yellow, Black, White and Clear Coat) | ||
| Configuration | C,M,Y,K,ClearCoat,Wh | ||
| Ink curing unit | Single UV LED Lamp | ||
| Printing resolutions | Maximum 1440x720 dpi | ||
| Distance accuracy when printing | Error of less than ± 0.3 % of distance traveled, or ± 0.012 in (0.3 mm), whichever is greater | ||
| Interface/Connectivity | Ethernet (10 BASE-T / 100 BASE-TX, automatic switching) | ||
| Power-saving function | Automatic sleep feature | ||
| Power supply | Volatage and frequency | AC 100 to 240 V ± 10%, 50/60 Hz | |
| Required power capacity | Maximum 1.8 A | ||
| Power consumption | During operation | Approximately 156 W | |
| Sleep mode | Approximately 16.7 W | ||
| Acoustic noise level | During operation | 60dB (A) or less | |
| During standby | 49dB (A) or less | ||
| Outer Dimensions | 998 (W) x 867 (D) x 546 (H) mm (39.3 x 34.2 x 21.5 in.) |
||
| Weight | 85 kg (187.4 lbs) | ||
| Environment | Power on (*2) | Temperature 20° to 32°C: (68° to 90°F) (22°C [72°F] or more recommended), Humidity: 35 to 80% (no condensation) |
|
| Power off | Temperature: 15° to 40°C (41° to 104°F), Humidity: 20 to 80% (no condensation) |
||
| Included items | Power cord, adhesive sheet, software RIP (Roland DG VersaWorks™), user documentation | ||
Warranty
All new equipment is covered under a 12 month warranty and we also provide you with complete peace of mind by offering a 7 day money back guarantee!
