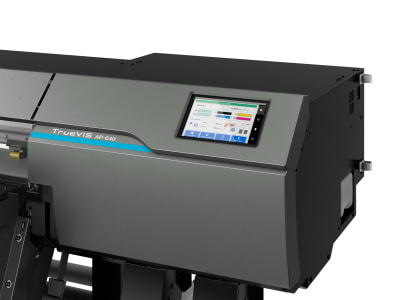

Roland DG TrueVIS AP-640 Resin Printer
Roland DG TrueVIS AP-640 premium 4-colour Resin printer with fast drying inks, excellent durability and optimum usability
Build and expand your sign and graphics business with a wide range of applications, low running-costs, and the quick drying benefits of Roland DG's first resin printer.
Dual, staggered printheads with variable dot printing and true rich colour presets offer natural, vibrant print results with higher colour saturation.
Water-based TrueVIS resin ink provides quick-drying, scratch-resistant, and safe results on a wide range of media. Legendary Roland DG machine reliability, service, and support now available in a resin ink printer.
The widest colour gamut in its class the TA Inks boast the widest gamut and most vibrant colours of any 4-colour resin/latex wide-format printer.
The AP-640 offers excellent colour reproduction capabilities, allowing you to match brand colours, even those that are traditionally difficult.
The latest TrueVIS media feed and take-up system ensure stable, accurate printing over long print runs, commonly an issue with other devices.
More than 300 popular media profiles are ready for use with the AP-640 and TA Ink, including PVC and non-PVC media.
- Drying time is virtually eliminated thanks to a built in heating unit.
- Dual, staggered Piezo printheads receive optimiser and ink in tandem to maintain optimal workflow.
- Improved Ink capacity with new 700 ml high-capacity ink pouches.
Water-based resin ink and true rich colour 3 preset works together to ensure vibrant colour and natural-looking print quality.
VersaWorks 6 RIP software to effortlessly manage your print output.
- Low running costs with high pigment, quick drying resin inks.
What can you create?
- Labels and stickers
- Fabric and fine art
- Vehicle graphics
- Roll-up screens
- Vinyl & Film
|Printing method||Piezo ink-jet method|
|Media||Width||10.2 to 64 in. (259 to 1,625 mm)|
|Thickness||Max. 0.039 in. (1.0 mm) with liner|
|Roll outer diameter||Max. 9.8 in. (250 mm)|
|Roll weight||Max. 99 lb. (45 kg)|
|Core diameter||3 in. (76.2 mm) or 2 in. (50.8 mm)|
|Printing width (*1)||Max. 63.5 in. (1,615 mm)|
|Ink||Type||Resin ink 700 ml pouch|
|Colours||Four colours (cyan, magenta, yellow, and black) and optimiser|
|Printing resolution (dots per inch)||Max. 1200 dpi|
|Ink drying system (*2)||Print heater set temperature: 77 to 113°F (25 to 45°C)|
|Dryer set temperature: 158 to 230°F (70 to 110°C)|
|Connectivity||Ethernet (100BASE-TX/1000BASE-T, automatic switching)|
|Power-saving function||Automatic sleep feature|
|Rated Input||Printer: 200-240 Va.c. 50/60 Hz 3 A|
|Dryer 1: 200-240 Va.c. 50/60 Hz 10 A|
|Dryer 2: 200-240 Va.c. 50/60 Hz 10 A|
|Power consumption||During operation||Approx. 4,000 W|
|Sleep mode||Approx. 65 W|
|Acoustic noise level||During operation||69 dB (A) or less|
|During standby||53 dB (A) or less|
|Dimensions (Width x Depth x Height)||113.7 in. × 33 in. × 61.1 in. (2,886 mm × 836 mm × 1,550 mm)|
|Weight (with stand)||587 lb. (266 kg)|
|Environment (*3)||During operation||Temperature: 68 to 86 °F (20 to 30 °C),|
|Humidity: 20 to 80 %RH (no condensation)|
|Recommended Environment||Temperature: 68 to 77 °F (20 to 25 °C),|
|Humidity: 40 to 60 %RH (no condensation)|
|Not operating||Temperature: 41 to 104 °F (5 to 40 °C),|
|Humidity: 20 to 80 %RH (no condensation)|
|Included items||Dedicated stand, power cords, dryers, media take-up unit, media holders, separating knife, replacement blade, cleaning liquid bottle for maintenance, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc.|
