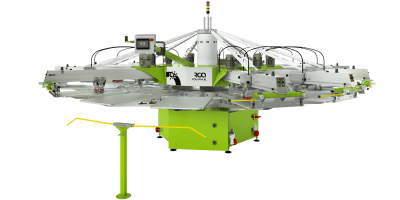

ROQ YOU Screen Printing Machine
A screen-printing machine must be robust, fast, reliable, and precise.
A screen-printing machine must be robust, fast, precise, and it must deliver impressive performance. The ROQ You is a combination of all these features.
On the ROQ YOU every print head has its own control panel; but the machine can be fully controlled from the central console, including any accessories you may have connected to it. Controlling the machine is very intuitive, which allows for faster setup times or adjustments on the fly.
With the user-friendly software, the ROQ YOU can be the solution for your business to succeed in the textile printing market.
TECHNICAL SPECS
- Aluminum honeycomb pallets
- Squeegees with electric movement with ac variator
- Independent control panel on all print heads
- Choice of pneumatic screen holder: ”U” clamp or pin system
- Print head central elevation
- Frequency drive rotation system for a quick and smooth index
- Print heads with high-lift position for quick and easy screen cleaning
- Central control panel with polycromatic LCD touch screen
- Micro registration screen system with vernier scale
- Individual controls for managing print and flood speed, height and angle of the squeegees and stroke length
Order
Product Specifications
| ROQ YOU | P08 M | P10 M | P10XL | P12XL | P14XL | P16XL | P18XL | P20XL | P22XL |
|---|---|---|---|---|---|---|---|---|---|
| Number of colors (max.) | 7 | 9 | 9 | 10 | 12 | 14 | 16 | 18 | 20 |
| Number of pallets | 8 | 10 | 10 | 12 | 14 | 16 | 18 | 20 | 22 |
| Number of flash cure connection units (optional) | 3 | 4 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Maximum production (pieces/h) * | 1050 | 1000 | |||||||
| Compr. air consumption (l/min. 7 bar) ** | 220l/min - 7,5cfm + consumption of each printhead | 340 l/min - 12 cfm consumption of each printhead | |||||||
| Maximum consumption (kVA) *** | 3.5 | 4 | 4 | 5.5 | 6 | 7 | 7.5 | 8 | 9 |
| Machine diameter (mm/feet) | 3600 / 11.8’ | 3900 / 12.8’ | 4600 / 15.1’ | 5200 / 17.1’ | 5450 / 17.9’ | 5900 / 19.4’ | 6325 / 20.8’ | 6950 / 22.8’ | 7250 / 23.8’ |
| Total height (mm/feet) | 2322 / 7.6’ | 2400 / 7.9’ | 2400 / 7.9’ | 2423/ 7.9’ | 2463 / 8.1’ | 2485 / 8,2' | 2652 / 8.7’ | 2698 / 8.9’ | 2698 / 8.9’ |
| Minimum width of the base (mm/feet) | 1022 / 3.4’ | 1346 / 4.4’ | 1346 / 4.4’ | 1550 / 5.1’ | 1800 / 5.9’ | 2014 / 6.6’ | 2280 / 7.5’ | 2230 / 7.3’ | 2230 / 7.3’ |
| Machine weight (kg/pounds) | 1150 / 2535 | 1200 / 2646 | 1280 / 2822 | 1900 / 4190 | 2200 / 4850 | 2650 / 5842 | 3150 / 6945 | 3650 / 8047 | 3900 / 8598 |
** Consumption of each electric printhead: 15l/min | 0.5cfm in 15 pieces/min.
*** These values exclude the consumption with flash-curing, they should be calculated separately, taking into account the number and model of the flash cure on the machine.
- Power supply: 230V+N, 2x230V, 3x230V, 3x400V+N - 50Hz or 60Hz. See flash cure page.
